Off-Road Tires

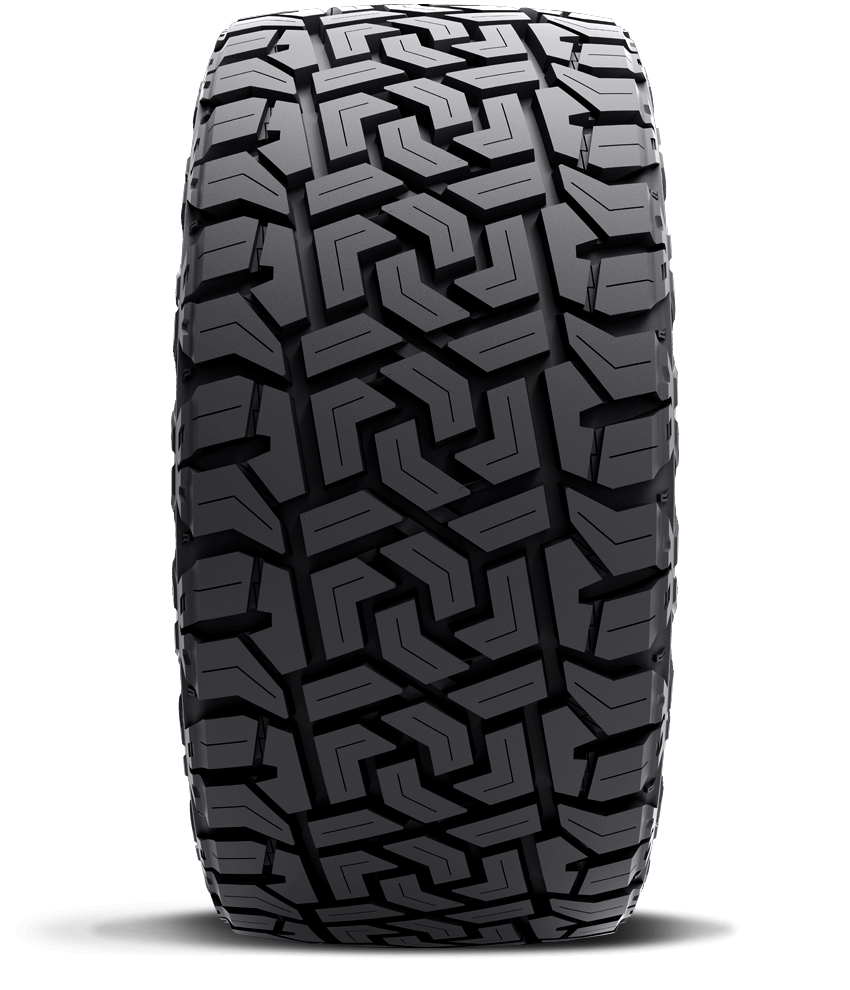

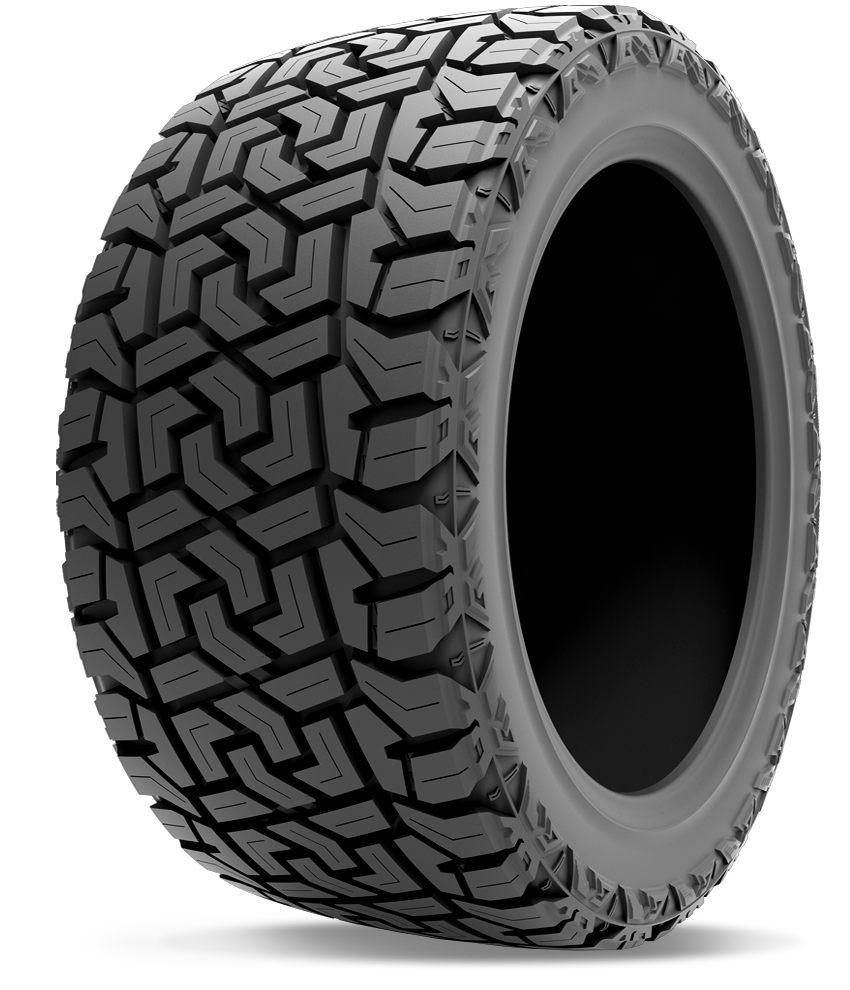

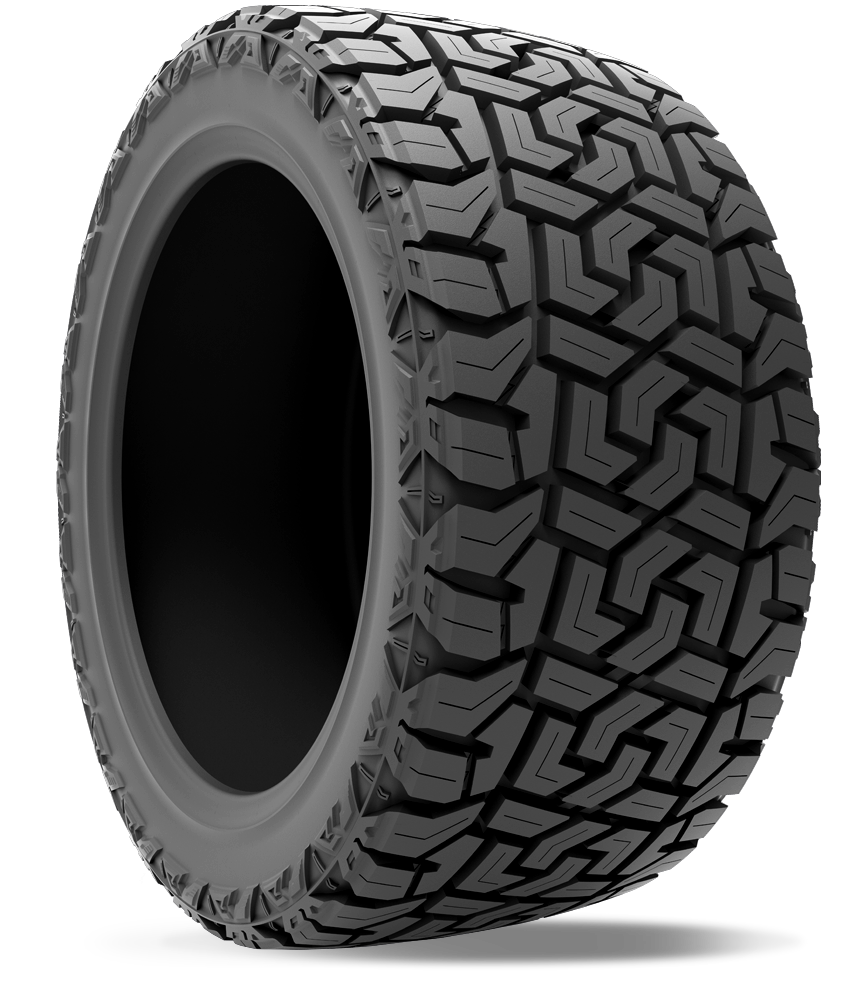

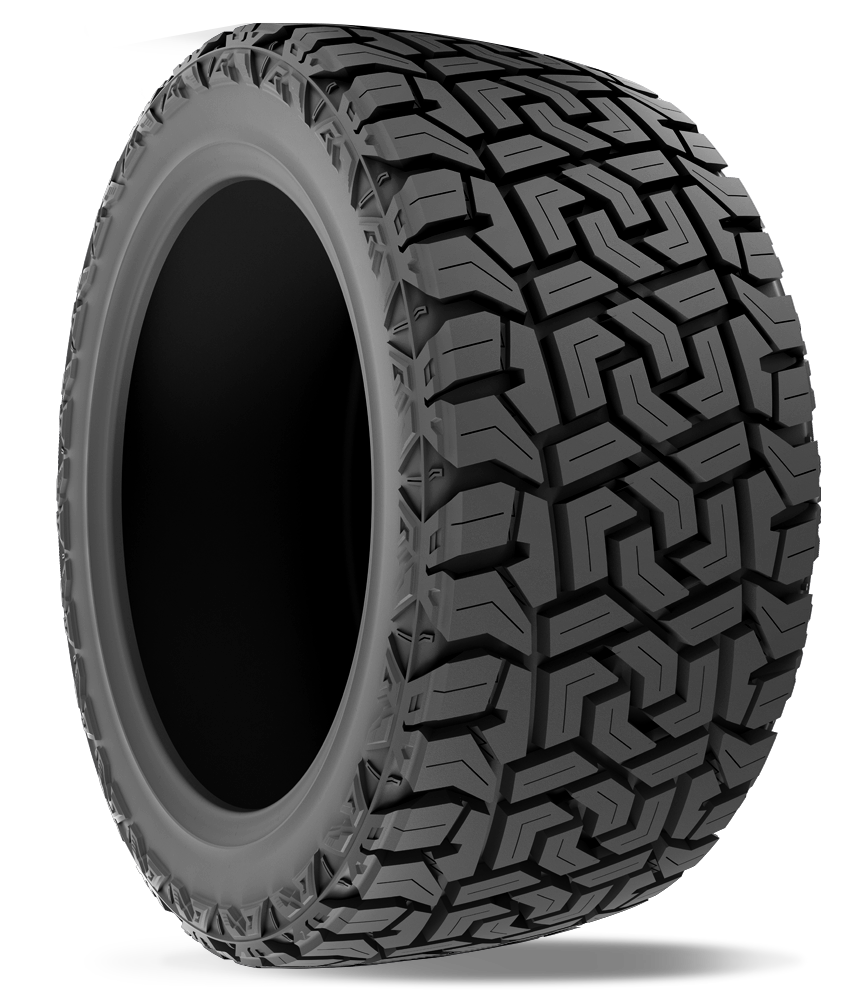

The MaxGrip X/T is designed for all extreme terrains. Equipped with an innovative tread design and refined sidewall, it provides exceptional traction for excellent off-road performance and on-road driving confidence, while also reducing irregular wear in both wet and dry road conditions.

Season
Summer
Vehicle Type
Light Truck

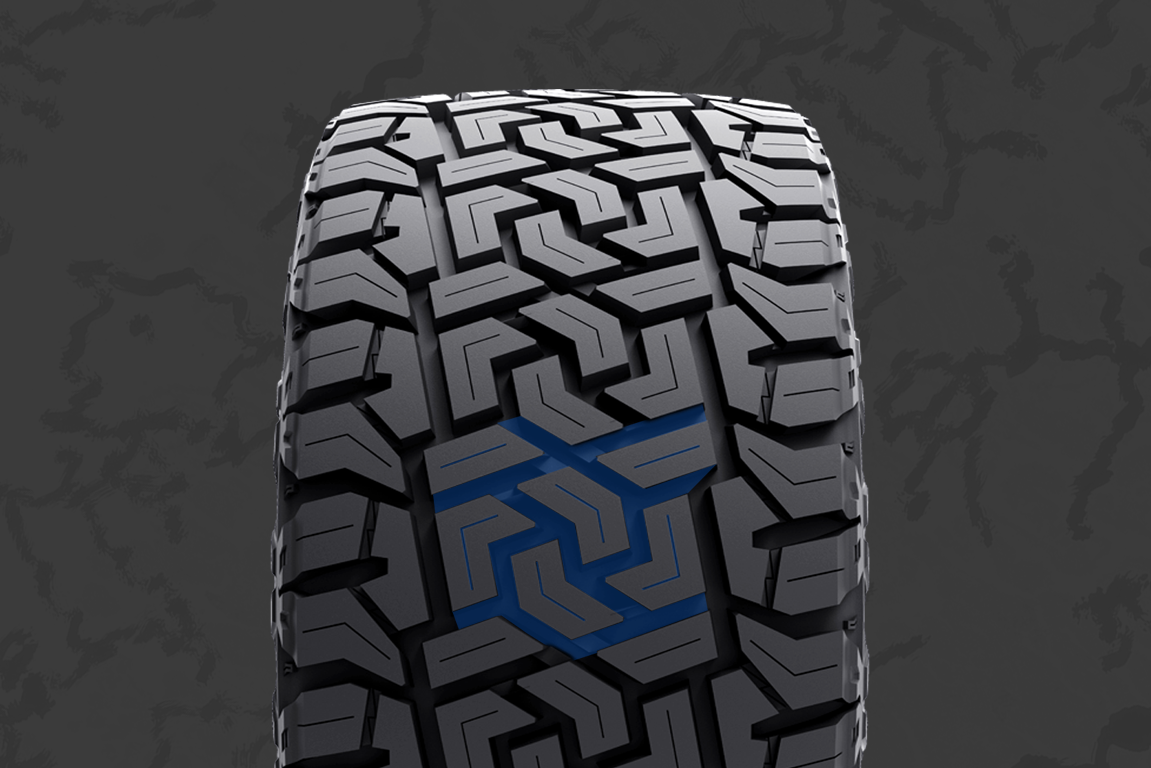

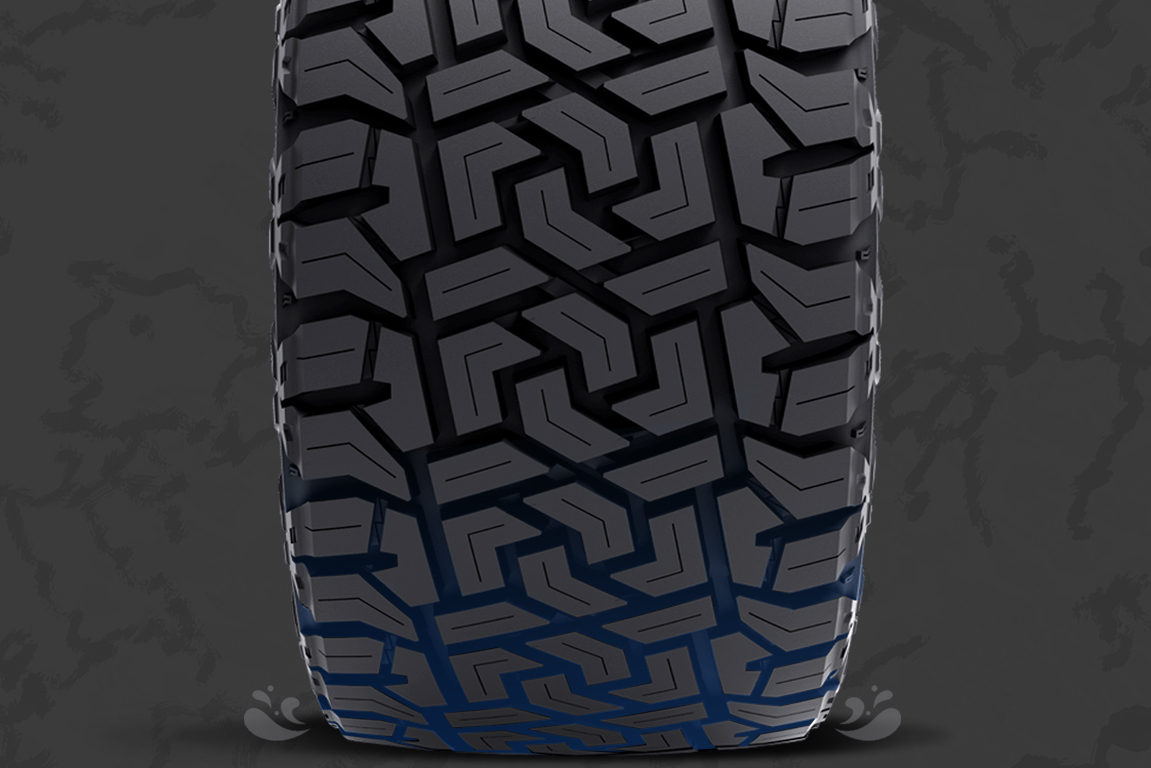

Balanced Off- and On-Road Performance

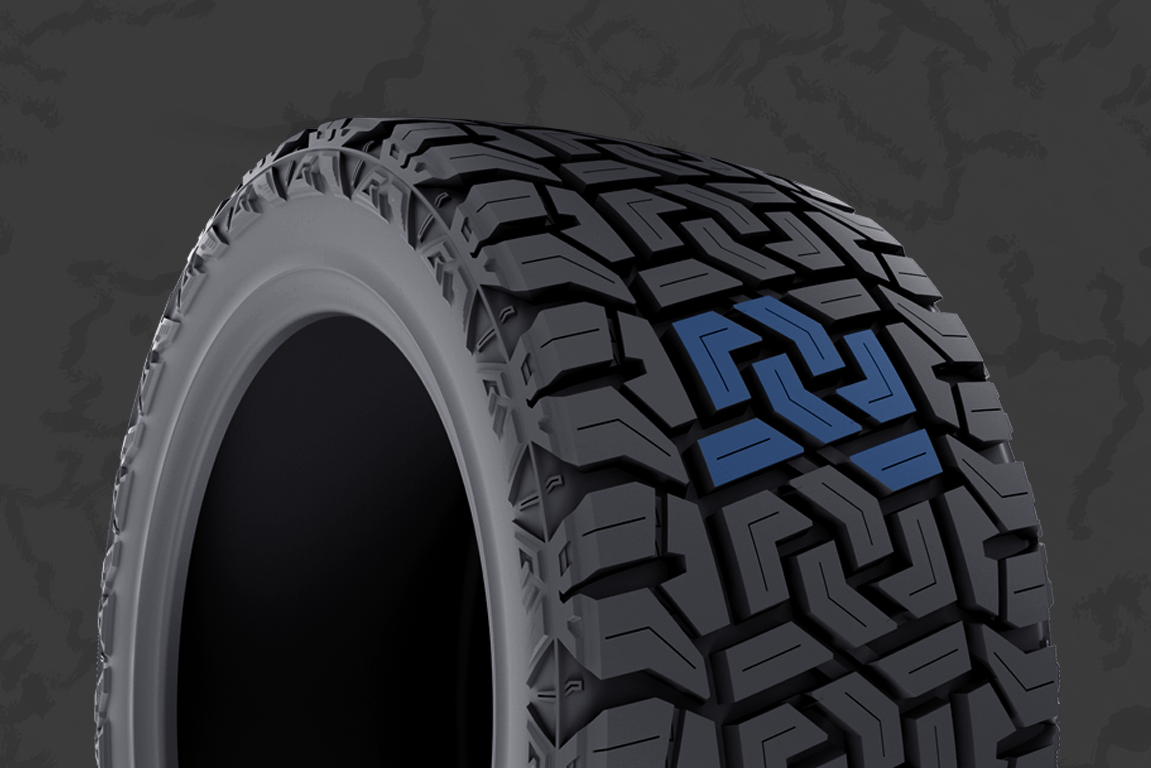

The refined pattern design with optimized void ratio and multi-directional staggered tread blocks offer balanced off- and on-road performance

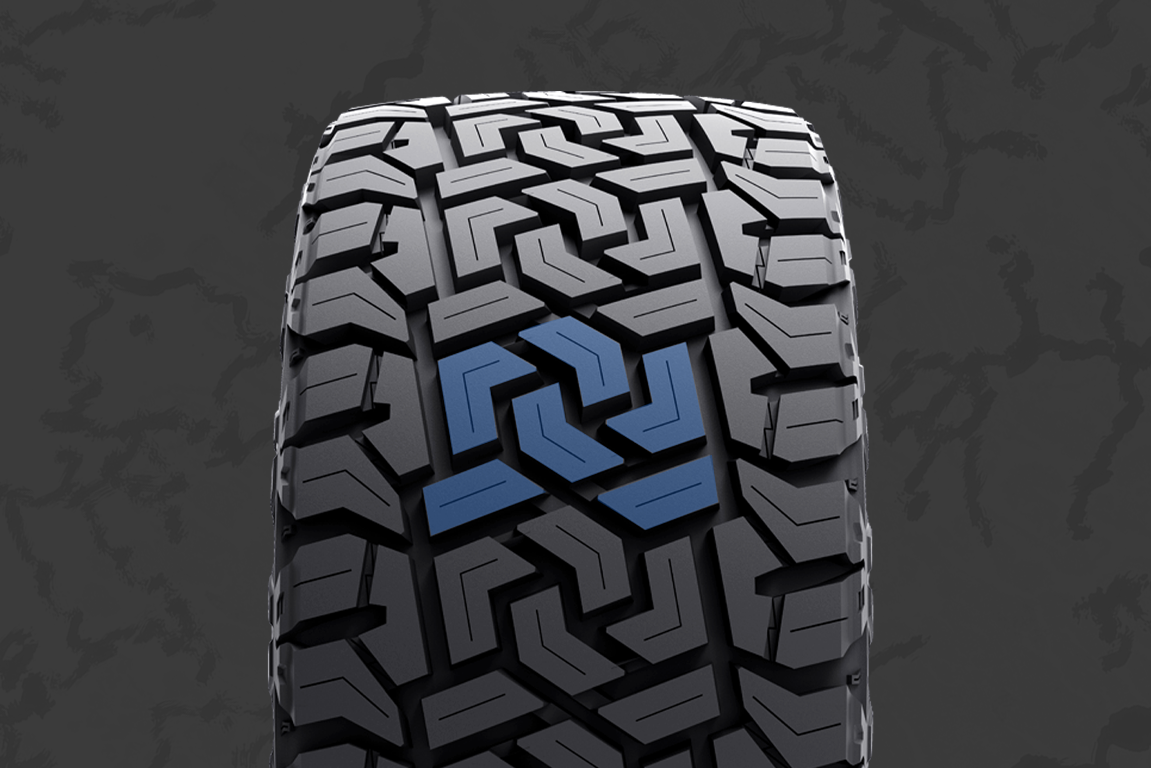

Superior Traction

Deep, multi-functional tread grooves and siping increase the contact area with ground to enhance traction even on extreme road conditions.

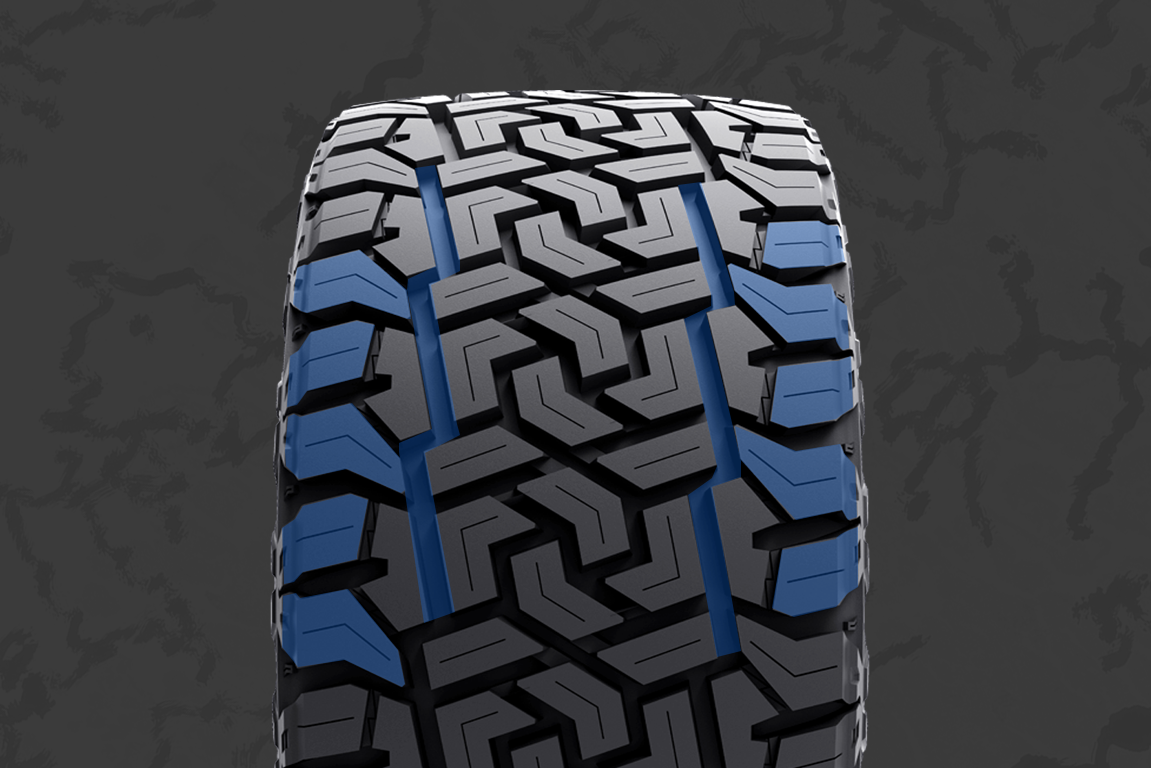

Better Cornering Stability and Drainage

Two longitudinal grooves with open shoulders ensure effective drainage on wet roads, and the wider shoulder tread blocks improve cornering stability.

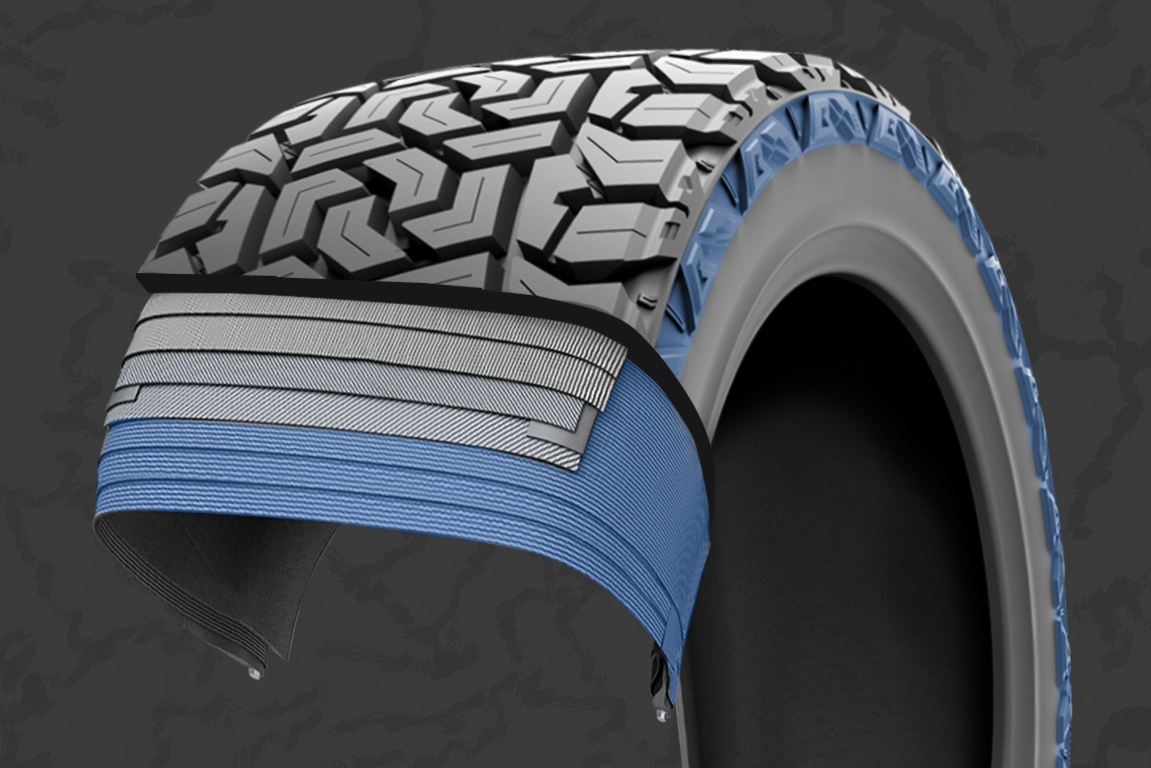

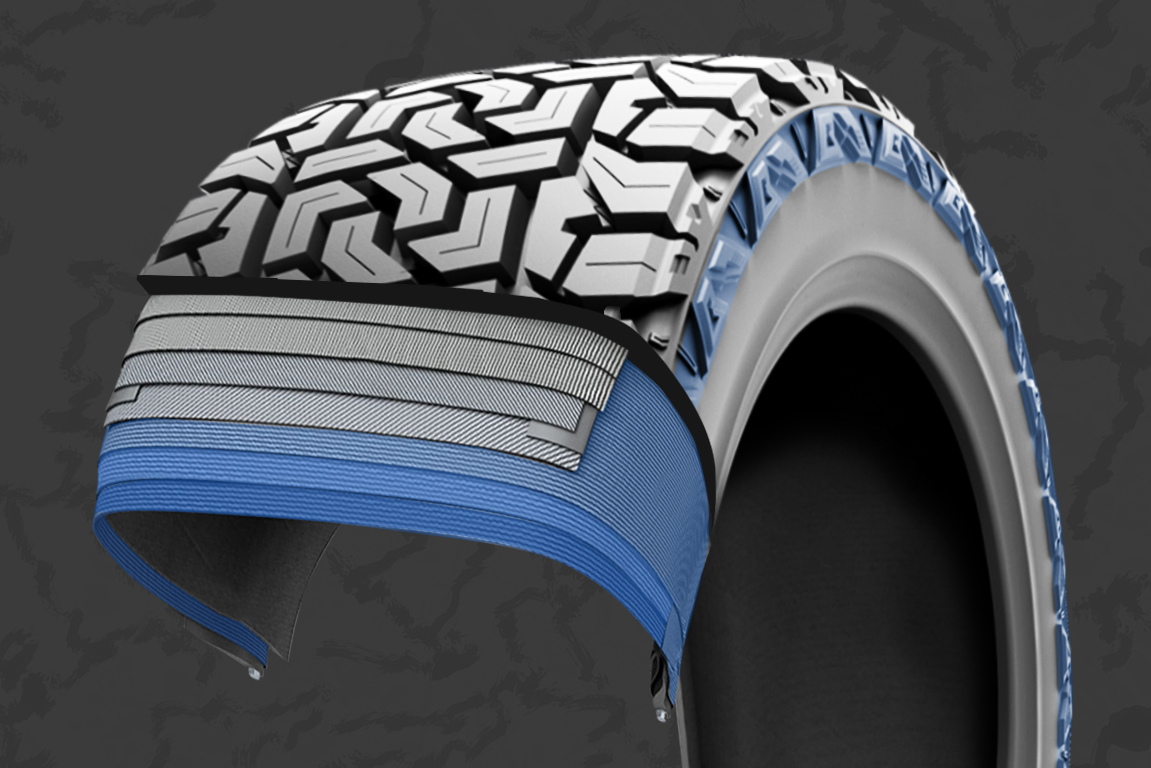

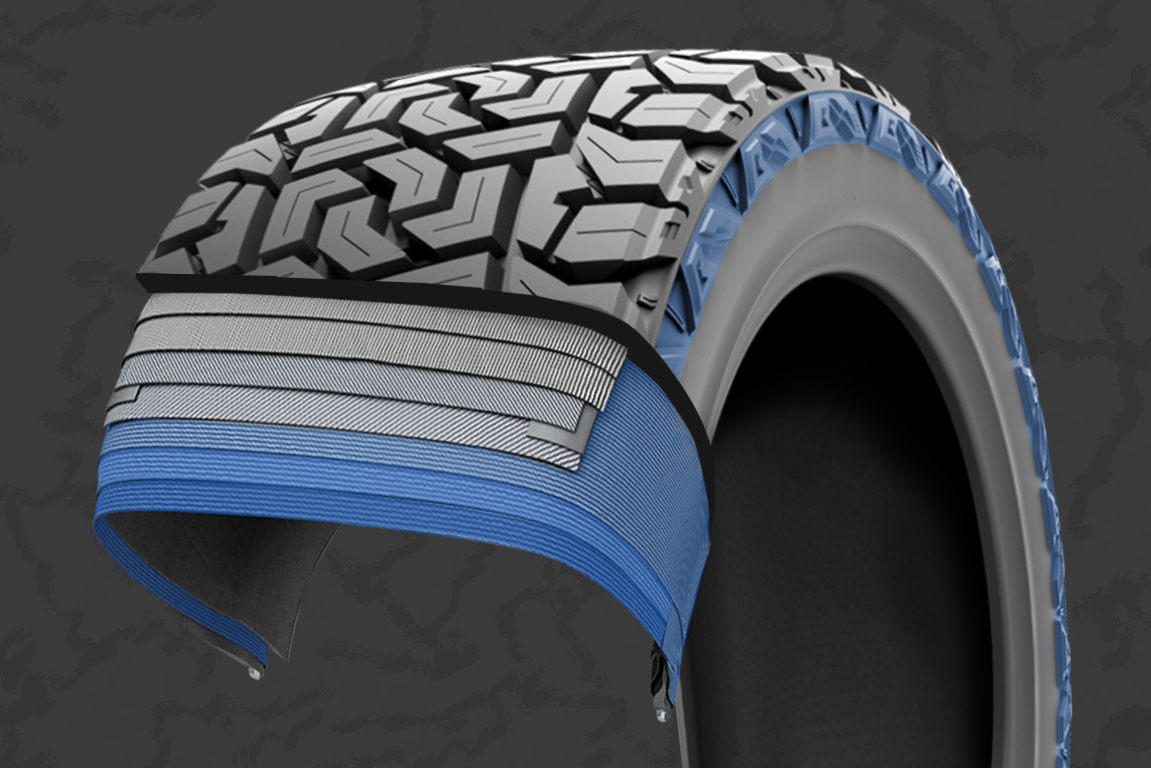

Excellent Puncture Resistance

3-Ply reinforced sidewall design highly enhances durability and delivers extra strength and adds resistance to damage from jagged off-road surfaces.

TIRE RATINGS

DRY PERFORMANCE
WET PERFORMANCE
QUIETNESS
OFF-ROAD PERFORMANCE
RIDE COMFORT

SIZE & SPECS

16''
17''
18''
20''
22''
24''
26''
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)
LT245/70R16 118/115S E GXT084 16.4  29.53  9.76  7J 2910/2680 80
LT245/70R16 122/119S E GXT094 16.4  29.53  9.76  7J 3305/3000 80
LT255/70R16 120/117S E GXT085 16.4  30.08  10.24  7 1/2J 3085/2835 80
LT255/70R16 122/119S E GXT095 16.4  30.08  10.24  7 1/2J 3305/3000 80
LT265/70R16 121/118S E GXT086 16.4  30.63  10.71  8J 3195/2910 80
LT265/70R16 123/120S E GXT096 16.4  30.63  10.71  8J 3415/3085 80
LT265/75R16 123/120S E GXT087 16.4  31.65  10.51  7 1/2J 3415/3085 80
LT285/75R16 126/123S E GXT088 16.4  32.83  11.26  8J 3750/3415 80
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)
LT245/65R17 117/114S E GXT089 16.4  29.53  9.76  7J 2835/2600 80
LT255/65R17 114/110S D GXT090 16.4  30.08  10.24  7 1/2J 2600/2335 65
LT265/65R17 120/117S E GXT091 16.4  30.55  10.71  8J 3085/2835 80
LT265/65R17 122/119S E GXT097 16.4  30.55  10.71  8J 3305/3000 80
LT265/70R17 123/120S E GXT092 16.4  31.65  10.71  8J 3415/3085 80
LT285/70R17 126/123S E GXT093 16.4  32.76  11.50  8 1/2J 3750/3415 80
33x12.50R17LT 124Q F GXT016 16.4  32.52  12.50  10J 3525 80
35x12.50R17LT 128Q F GXT017 16.4  34.52  12.50  10J 3970 80
37x12.50R17LT 128Q F GXT018 16.4  36.52  12.50  10J 3970 80
37x13.50R17LT 128Q E GXT019 16.4  36.52  13.58  11J 3970 65
40x13.50R17LT 128Q D GXT020 16.4  39.52  13.58  11J 3970 50
TIRE SIZELOAD/SPEED
INDEX		LOAD
RANGE		PART
NUMBER		TD
32ND		OD
INCH		SW
INCH		STANDARD
RIM		MAXIMUM
LOAD(LBS)		MAXIMUM
PRESS(PSI)
LT275/65R18123/120SEGXT10417.0 32.09 10.98 8J3415/308580
LT275/70R18128/125SFGXT10217.0 33.19 10.98 8J3970/364095
LT285/65R18125/122SEGXT10517.0 32.56 11.50 8 1/2J3640/330580
LT295/70R18129/126SEGXT10617.0 34.29 11.77 8 1/2J4080/375080
33x12.50R18LT122QFGXT05016.4 32.52 12.50 10J330580
35x12.50R18LT128QFGXT05116.4 34.52 12.50 10J397080
37x12.50R18LT128QFGXT05216.4 36.52 12.50 10J397080
37x13.50R18LT128QFGXT05316.4 36.52 13.58 11J397080
TIRE SIZELOAD/SPEED
INDEX		LOAD
RANGE		PART
NUMBER		TD
32ND		OD
INCH		SW
INCH		STANDARD
RIM		MAXIMUM
LOAD(LBS)		MAXIMUM
PRESS(PSI)
LT275/55R20123/120SFGXT00317.0 31.89 11.18 8 1/2J3415/308595
LT275/60R20123/120SEGXT00617.0 32.99 10.98 8J3415/308580
LT275/65R20128/125QFGXT00917.0 34.09 10.98 8J3970/364095
285/55R20116T XLGXT10314.5 32.36 11.69 9J275650
LT285/55R20125/122SFGXT00417.0 32.36 11.69 9J3640/330595
LT295/60R20126/123SEGXT00717.0 33.94 11.77 8 1/2J3750/341580
LT305/55R20125/122SFGXT00517.0 33.23 12.44 9 1/2J3640/330580
31x12.50R20LT118SEGXT02316.4 30.52 12.50 10 1/2J291065
31x13.50R20LT121SEGXT02416.4 30.52 13.58 11 1/2J319565
LT325/60R20126/123SEGXT00817.0 35.35 13.03 9 1/2J3750/341565
33x11.50R20LT118SEGXT02116.4 32.52 11.42 9J291080
33x12.50R20LT119SFGXT01217.0 32.52 12.50 10J300080
33x13.50R20LT121SFGXT02616.4 32.52 13.58 11J319580
33x14.50R20LT120SFGXT01417.0 32.52 14.46 12 1/2J308580
35x11.50R20LT124SEGXT02216.4 34.52 11.42 9J352580
35x12.50R20LT125SFGXT02516.4 34.52 12.50 10J364080
35x13.50R20LT126SFGXT02716.4 34.52 13.58 11J375080
35x14.50R20LT127SFGXT02916.4 34.52 14.46 11 1/2J386080
35x15.50R20LT127SFGXT03016.4 34.52 15.54 12 1/2J386080
37x13.50R20LT128SFGXT02816.4 36.52 13.58 11J397080
38x15.50R20LT128SEGXT03116.4 37.52 15.54 12 1/2J397065
TIRE SIZELOAD/SPEED
INDEX		LOAD
RANGE		PART
NUMBER		TD
32ND		OD
INCH		SW
INCH		STANDARD
RIM		MAXIMUM
LOAD(LBS)		MAXIMUM
PRESS(PSI)
LT275/50R22119/116SEGXT01117.0 32.87 11.18 8 1/2J3000/275580
285/45R22114T XLGXT00214.5 32.09 11.22 9 1/2J260150
305/40R22114H XLGXT00113.9 31.61 12.32 11J260150
305/45R22118H XLGXT08313.2 32.80 11.93 10J291050
31x12.50R22LT115SEGXT05416.4 30.52 12.50 11 1/2J268065
31x13.50R22LT118SEGXT05516.4 30.52 13.58 12J291065
33x11.50R22LT121SEGXT08116.4 32.52 11.42 9J319580
33x12.50R22LT114SFGXT01317.0 32.52 12.50 10J260080
33x13.50R22LT114SFGXT05716.4 32.52 13.58 11 1/2J260080
33x14.50R22LT117SFGXT01517.0 32.52 14.46 13J283580
35x11.50R22LT124SEGXT08216.4 34.52 11.42 9J352580
35x12.50R22LT121SFGXT05616.4 34.52 12.50 10J319580
35x13.50R22LT122SFGXT07716.4 34.52 13.58 11J330580
35x14.50R22LT123SFGXT05916.4 34.52 14.46 12 1/2J341580
35x15.50R22LT124SFGXT06016.4 34.52 15.43 13J352580
37x13.50R22LT128SFGXT05816.4 36.52 13.58 11J397080
LT375/45R22128SFGXT01017.0 35.31 14.76 12 1/2J397080
38x15.50R22LT128SEGXT06116.4 37.52 15.54 12 1/2J397065
TIRE SIZELOAD/SPEED
INDEX		LOAD
RANGE		PART
NUMBER		TD
32ND		OD
INCH		SW
INCH		STANDARD
RIM		MAXIMUM
LOAD(LBS)		MAXIMUM
PRESS(PSI)
31x12.50R24LT109SEGXT03216.4 30.52 12.50 11 1/2J227065
31x13.50R24LT111SEGXT03316.4 30.52 13.58 12J240565
33x12.50R24LT110SFGXT03416.4 32.52 12.60 11 1/2J233580
33x13.50R24LT113SFGXT03716.4 32.52 13.58 12J253580
33x14.50R24LT118SFGXT07616.4 32.52 14.46 13J291080
35x12.50R24LT116SFGXT03516.4 34.52 12.45 10 1/2J275580
35x13.50R24LT116SFGXT03816.4 34.52 13.44 12J275580
35x14.50R24LT118SEGXT04016.4 34.52 14.46 13J291065
35x15.50R24LT118SFGXT04216.4 34.52 15.52 14J291080
37x12.50R24LT117SEGXT08016.4 36.52 12.50 10J283565
37x13.50R24LT124SFGXT03916.4 36.52 13.58 11J352580
37x14.50R24LT125SFGXT04116.4 36.52 14.46 11 1/2J364080
37x15.50R24LT126SFGXT04316.4 36.52 15.54 13J375080
38x15.50R24LT128SFGXT04416.4 37.52 15.54 12 1/2J397080
TIRE SIZELOAD/SPEED
INDEX		LOAD
RANGE		PART
NUMBER		TD
32ND		OD
INCH		SW
INCH		STANDARD
RIM		MAXIMUM
LOAD(LBS)		MAXIMUM
PRESS(PSI)
33x12.50R26LT105SFGXT07816.4 32.52 12.50 11 1/2J204080
33x13.50R26LT116SFGXT07916.4 32.52 13.58 12J275580
33x14.50R26LT108SEGXT06516.4 32.52 14.46 13J220565
35x12.50R26LT115SFGXT06216.4 34.52 12.50 11 1/2J268080
35x13.50R26LT118SEGXT06316.4 34.52 13.58 12J291065
35x14.50R26LT117SEGXT06616.4 34.52 14.46 13J283565
35x15.50R26LT123SFGXT06816.4 34.52 15.54 14J341580
37x12.50R26LT127SFGXT03616.4 36.52 12.50 10 1/2J386080
37x13.50R26LT117SFGXT06416.4 36.52 13.58 11J283580
37x14.50R26LT118SFGXT06716.4 36.52 14.46 13J291080
37x15.50R26LT118SFGXT06916.4 36.52 15.54 14J291080
38x15.50R26LT126SEGXT07016.4 37.52 15.54 14J375065
