Light Truck Tires, All Terrain Tires, Off-Road Tires

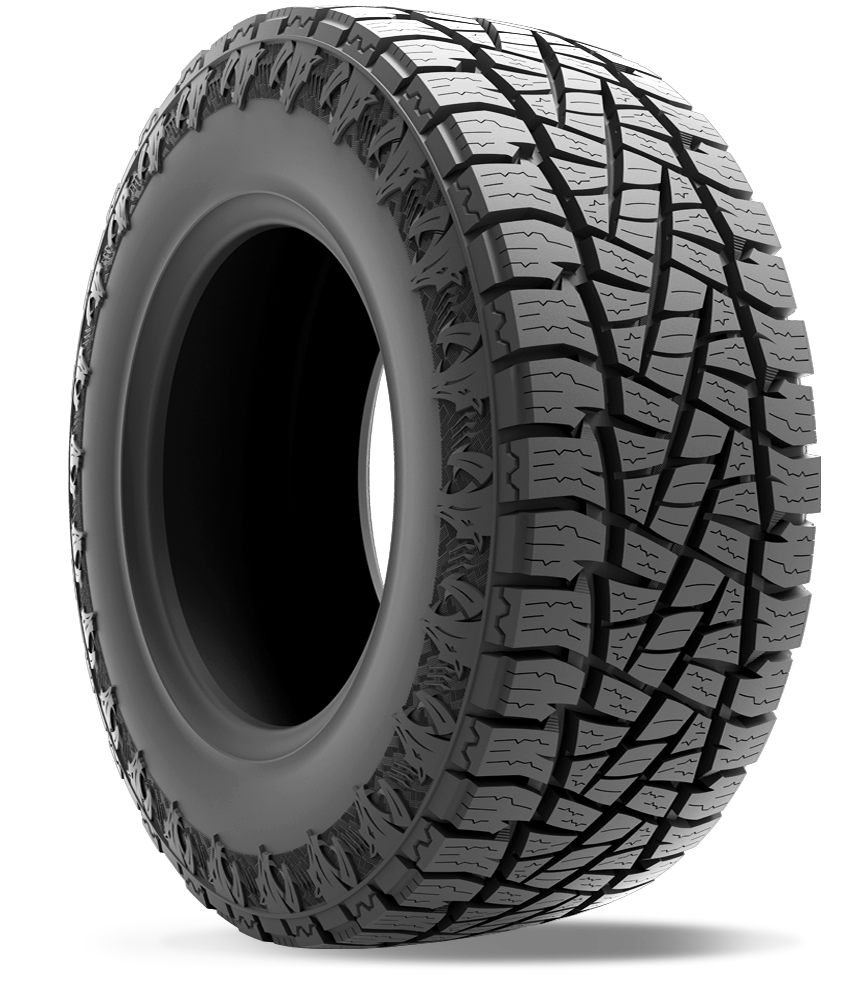

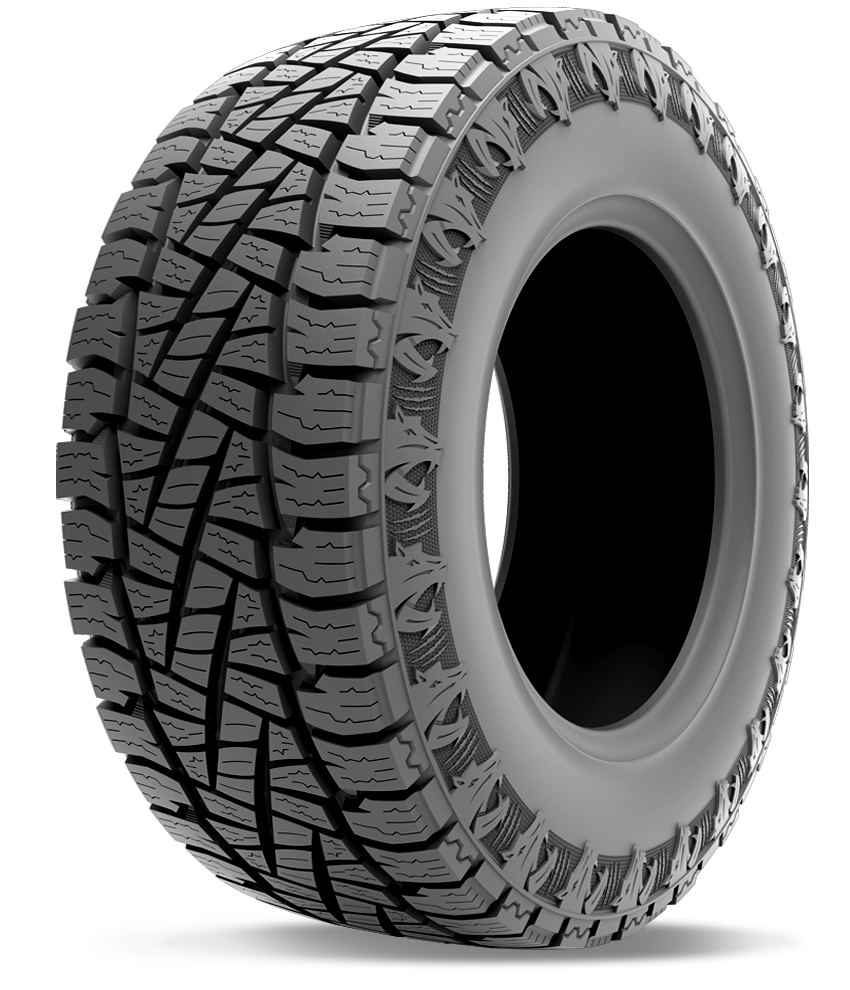

The MaxGrip A/T is designed to balance exceptional off-road capability with on-road performance and aggressive styling, as well as longer tread life. The optimized tread pattern and dual modern sidewall design provide sure-footed grip and puncture resistance when the road ends, delivering driving confidence regardless of terrain or weather.

Season
Summer
Vehicle Type
Light Truck

Balanced Performance for On-/Off-Road

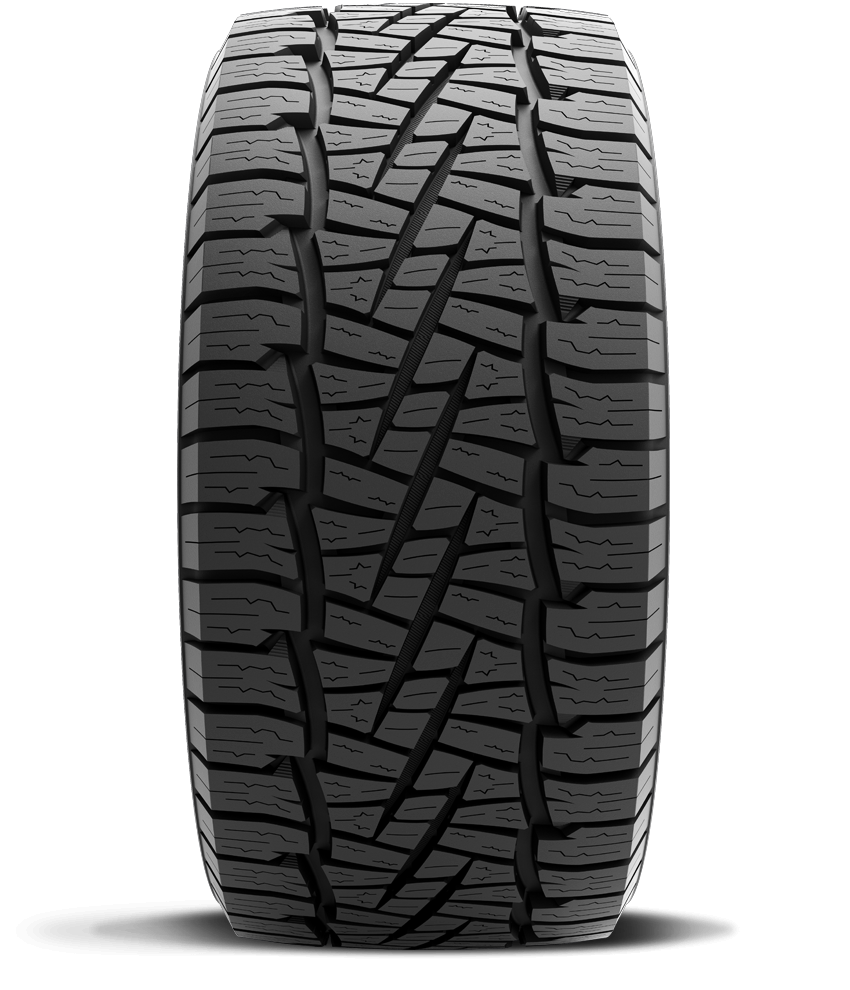

Interlocking tread blocks and multi-directional grooves with optimized void ratio maximize a good grip on paved, rocky and muddy roads

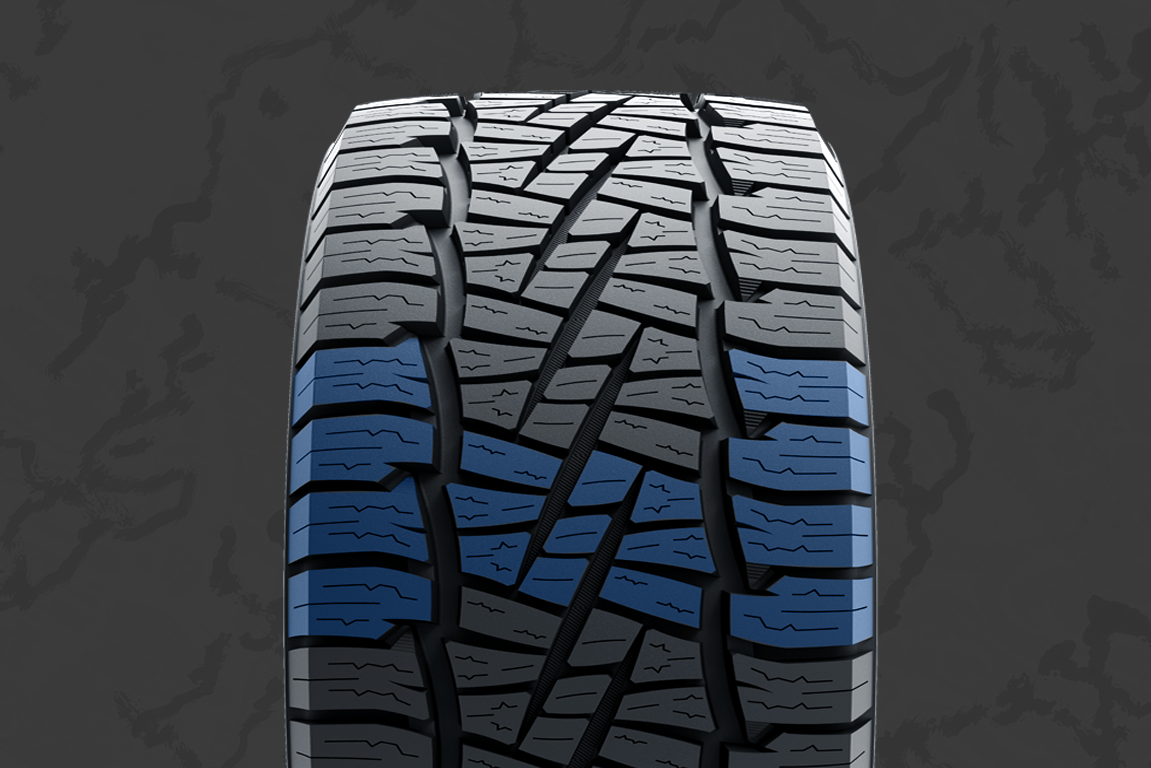

Superior Driving Stability and Cornering Speed

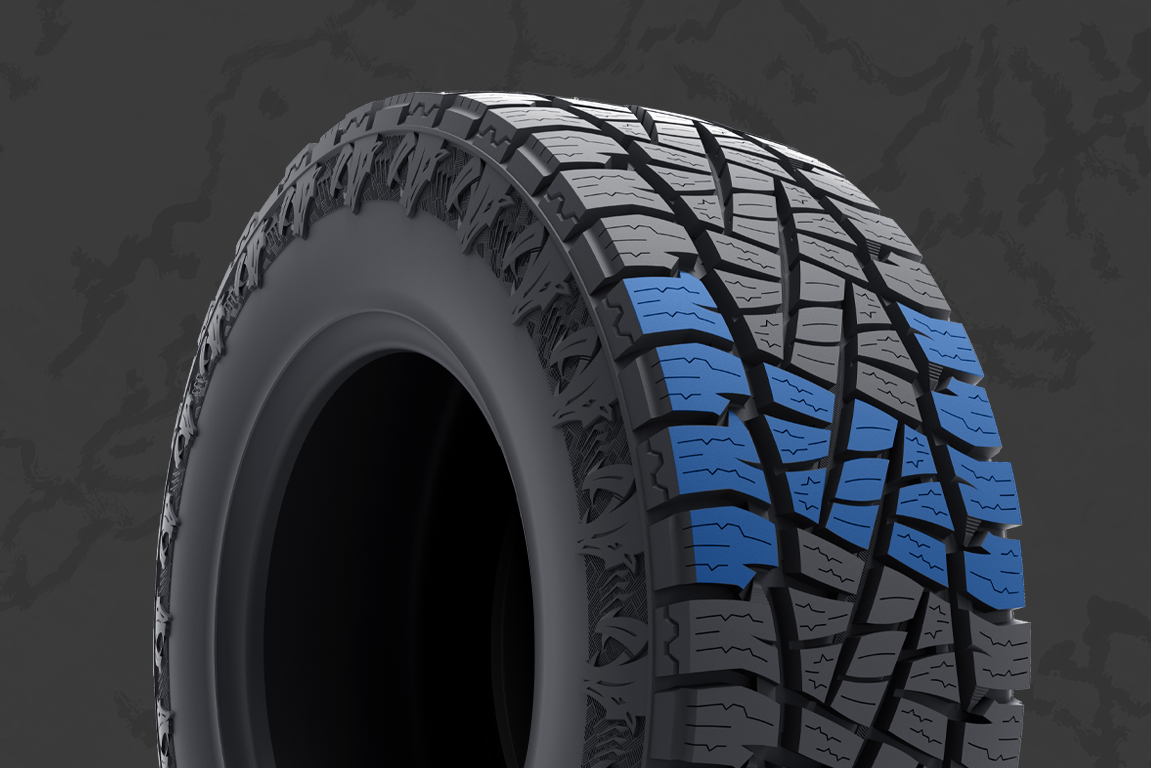

Widened central tread blocks provide predictable handling performance, and wide shoulder blocks ensure the responsive cornering speed.

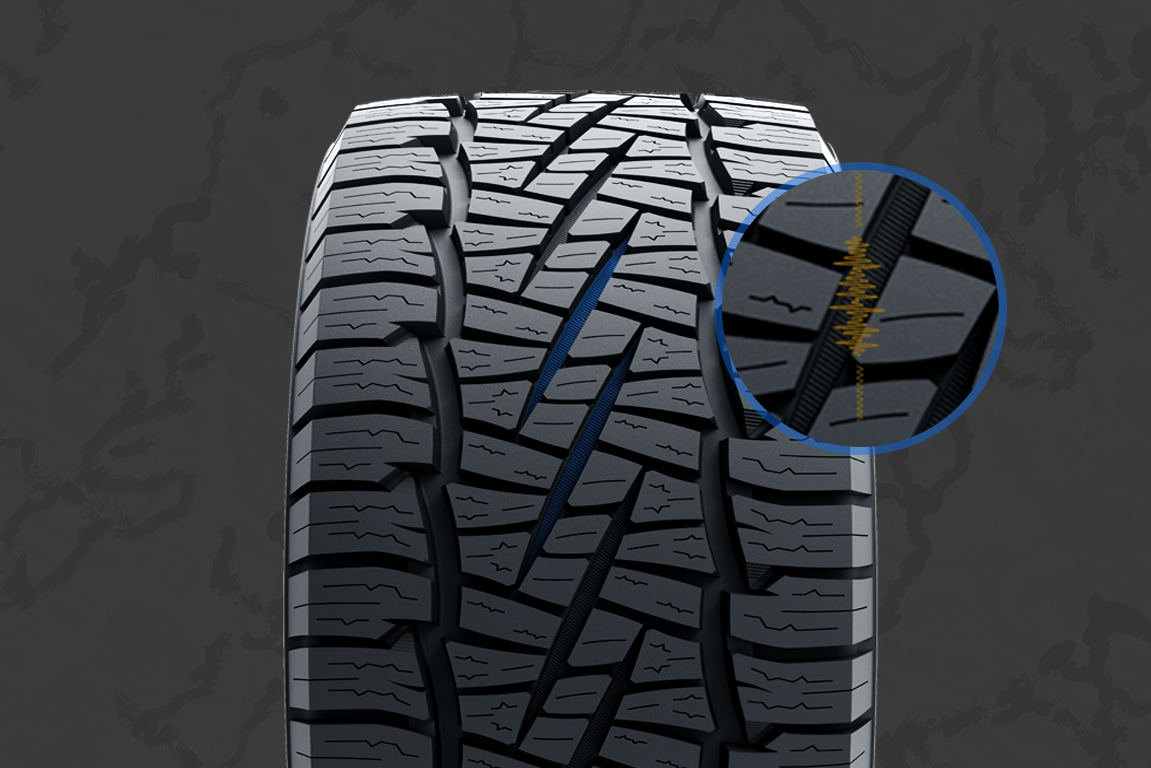

Lower Noise

The central gradient grooves with optimized pattern change the frequency of sound wave to reduce noise. The high-density steel sheets reduce the rigidity of the pattern blocks and the collision noise between the pattern and the ground.

Excellent Puncture Resistance

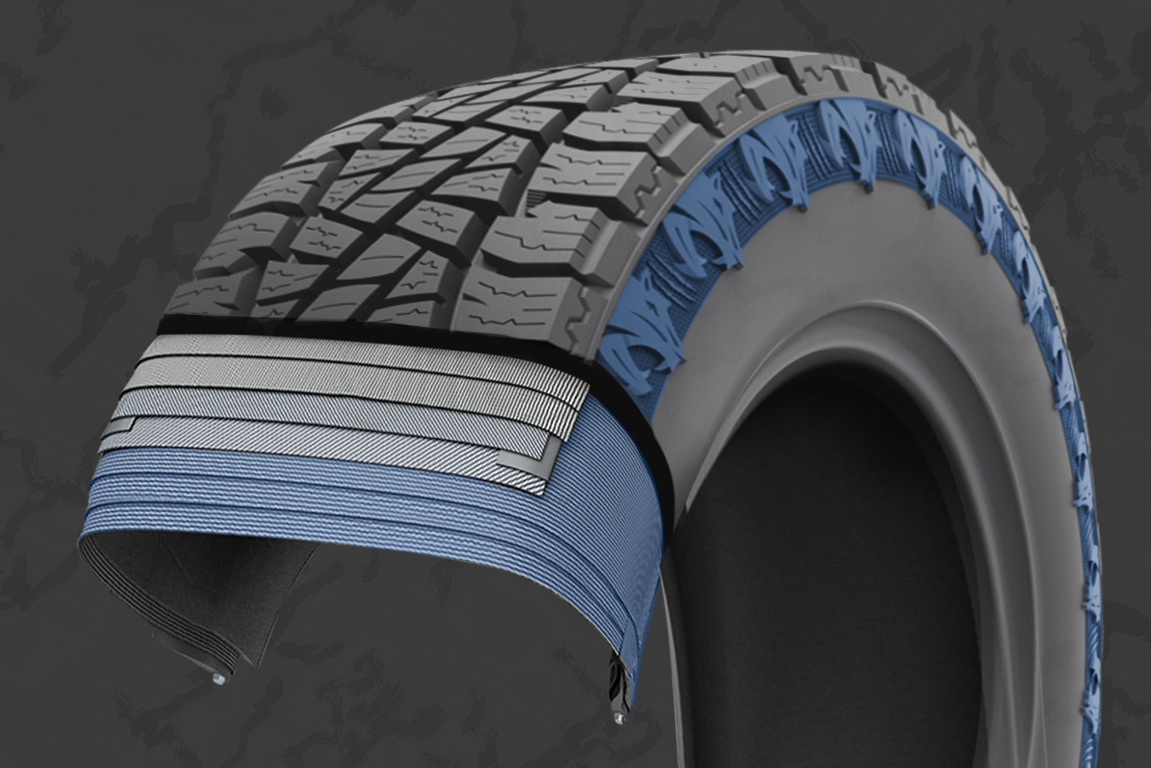

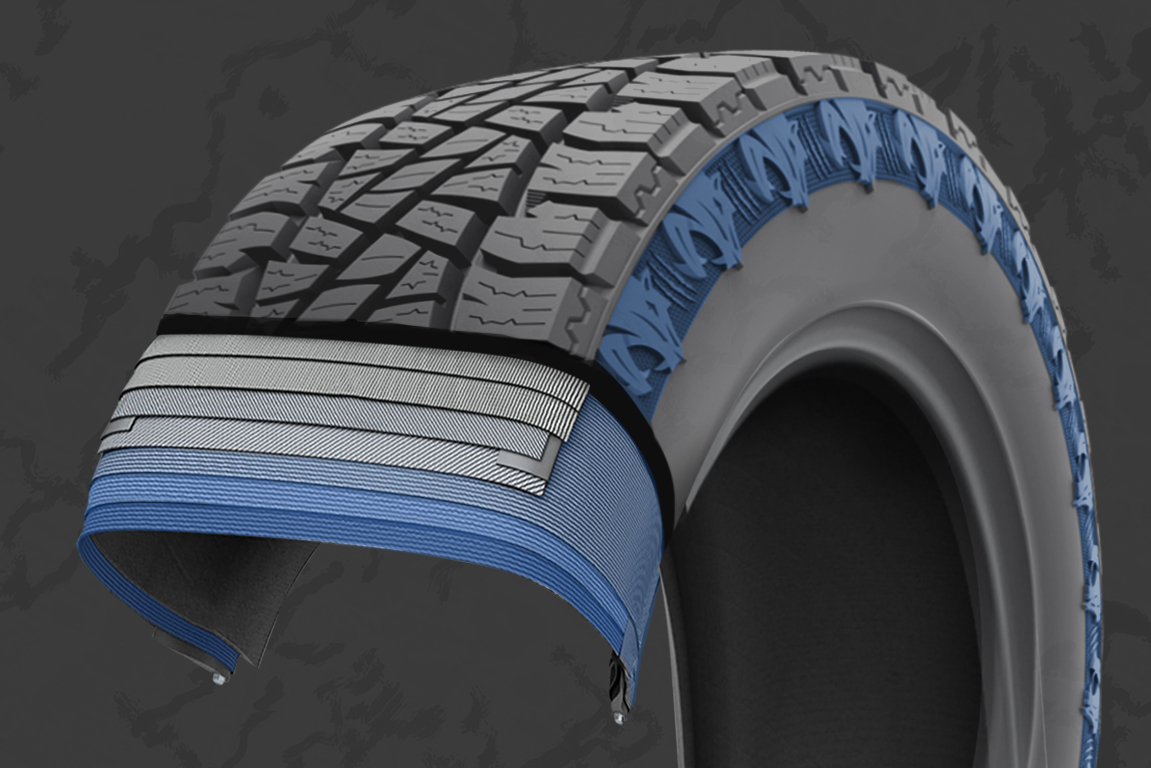

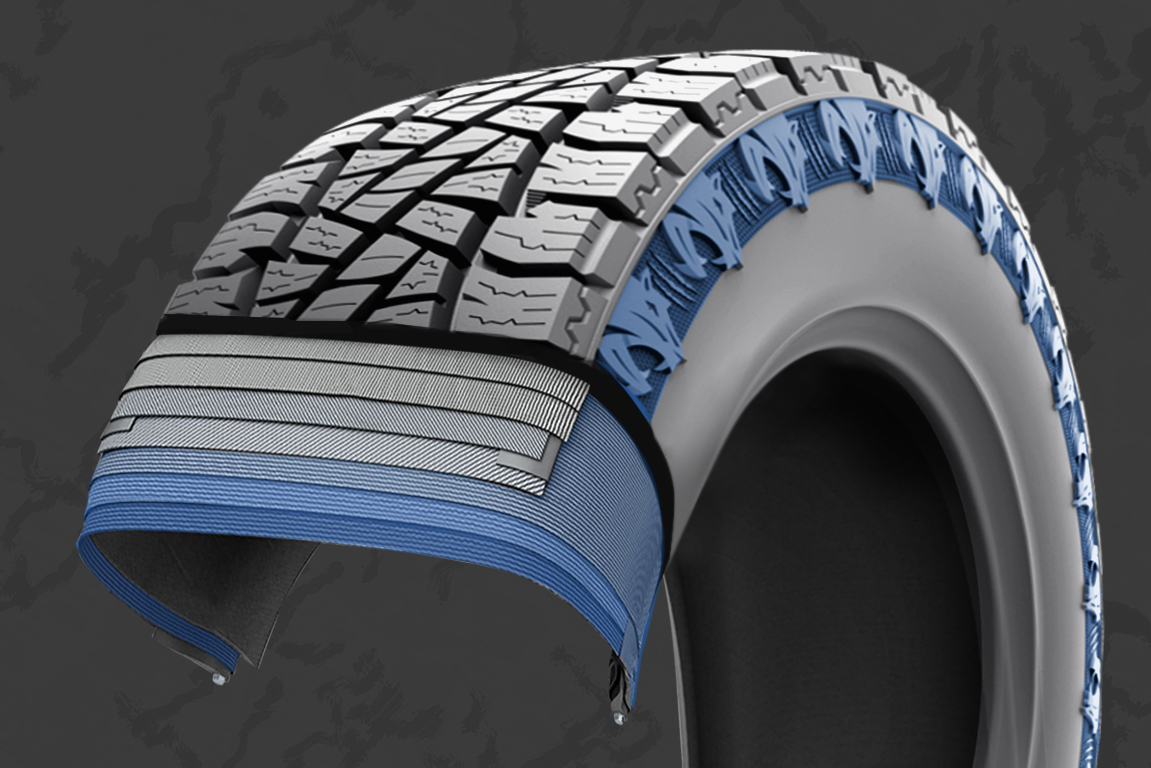

3-Ply enhanced sidewall and massive shoulder lugs offer protection against cuts, chips, and puncture.

TIRE RATINGS

DRY PERFORMANCE
WET PERFORMANCE
QUIETNESS
OFF-ROAD PERFORMANCE
RIDE COMFORT

SIZE & SPECS

16''
17''
18''
20''
22''
24''
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
LT235/85R16 126/123S F GAT017 15.1  31.73 9.25 6 1/2J 3750/3415 95 -
LT245/75R16 123/120S F GAT014 15.1  30.47 9.76 7J 3415/3085 95 -
LT265/75R16 123/120S E GAT015 15.1  31.65 10.51 7 1/2J 3415/3085 80 -
LT285/75R16 126/123S E GAT016 15.1  32.83 11.26 8J 3750/3415 80 -
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
225/60R17 103H XL GAT009 12.6  27.64 8.98 6 1/2J 1929 50 600 A B
LT235/80R17 120/117S E GAT043 15.1  31.81 9.25 6 1/2J 3085/2835 80 -
LT245/70R17 122/119S F GAT040 15.1  30.55 9.76 7J 3305/3000 95 -
LT245/75R17 121/118S E GAT019 15.1  31.50 9.76 7J 3195/2910 80 -
LT265/70R17 123/120S E GAT041 15.1  31.65 10.71 8J 3415/3085 80 -
LT285/70R17 126/123S E GAT042 15.1  32.76 11.5 8 1/2J 3750/3415 80 -
LT295/70R17 128/125S E GAT018 15.1  33.31 11.77 8 1/2J 3970/3640 80 -
33x12.50R17LT 124S F GAT033 15.1  32.52 12.50 10J 3525 80 -
35x12.50R17LT 128S F GAT034 15.1  34.52 12.50 10J 3970 80 -
37x12.50R17LT 128S F GAT035 15.1  36.52 12.50 10J 3970 80 -
37x13.50R17LT 128S E GAT036 15.1  36.52 13.58 11J 3970 65 -
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
225/55R18 102H XL GAT002 12.6  27.76 9.17 7J 1874 50 600 A B
265/60R18 114H XL GAT011 12.6  30.51 10.71 8J 2601 50 600 A B
LT265/65R18 122/119S E GAT020 15.1  31.54 10.71 8J 3305/3000 80 -
LT265/70R18 124/121S E GAT023 15.1  32.64 10.71 8J 3525/3195 80 -
275/65R18 116H XL GAT003 12.6  32.09 10.98 8J 2756 50 600 A B
LT275/65R18 123/120S E GAT021 15.1  32.09 10.98 8J 3415/3085 80 -
LT275/70R18 128/125S F GAT024 15.1  33.19 10.98 8J 3970/3640 95 -
LT285/65R18 125/122S E GAT022 15.1  32.56 11.5 8 1/2J 3640/3305 80 -
LT295/65R18 127/124S E GAT044 15.1  33.11 11.77 8 1/2J 3860/3525 80 -
LT295/70R18 129/126S E GAT025 15.1  34.29 11.77 8 1/2J 4080/3750 80 -
33x12.50R18LT 122S F GAT052 15.1  32.52 12.50 10J 3305 80 -
35x12.50R18LT 128S F GAT053 15.1  34.52 12.50 10J 3970 80 -
37x12.50R18LT 128S F GAT054 15.1  36.52 12.50 10J 3970 80 -
37x13.50R18LT 128S F GAT055 15.1  36.52 13.58 11J 3970 80 -
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
265/50R20 111H XL GAT004 12.6  30.47 10.91 8 1/2J 2403 50 600 A B
LT265/60R20 121/118S E GAT047 15.1  32.52 10.71 8J 3195/2910 80 -
275/55R20 117H XL GAT010 12.6  31.89 11.18 8 1/2J 2833 50 600 A B
LT275/55R20 123/120S F GAT045 15.1  31.89 11.18 8 1/2J 3415/3085 95 -
275/60R20 116H XL GAT005 12.6  32.99 10.98 8J 2756 50 600 A B
LT275/60R20 123/120S E GAT027 15.1  32.99 10.98 8J 3415/3085 80 -
LT275/65R20 128/125S F GAT029 15.1  34.09 10.98 8J 3970/3640 95 -
285/55R20 116H XL GAT013 12.6  32.36 11.69 9J 2756 50 600 A B
LT285/55R20 125/122S F GAT046 15.1  32.36 11.69 9J 3640/3305 95 -
LT285/60R20 125/122S E GAT028 15.1  33.46 11.5 8 1/2J 3640/3305 80 -
LT285/65R20 127/124S E GAT030 15.1  34.57 11.5 8 1/2J 3860/3525 80 -
LT295/55R20 123/120S E GAT026 15.1  32.76 12.17 9 1/2J 3415/3085 80 -
LT295/65R20 129/126S E GAT031 15.1  35.12 11.77 8 1/2J 4080/3750 80 -
33x12.50R20LT 119S F GAT037 15.1  32.52 12.50 10J 3000 80 -
35x12.50R20LT 125S F GAT038 15.1  34.52 12.50 10J 3640 80 -
37x12.50R20LT 128S F GAT039 15.1  36.52 12.50 10J 3970 80 -
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
275/50R22 115H XL GAT012 12.6  32.87 11.18 8 1/2J 2679 50 600 A B
LT275/50R22 119/116S E GAT048 15.1  32.87 11.18 8 1/2J 3000/2755 80 -
285/45R22 114H XL GAT006 12.6  32.09 11.22 9 1/2J 2601 50 600 A B
LT285/50R22 125/122S F GAT049 15.1  33.27 11.69 9J 3640/3305 95 -
LT285/55R22 124/121S E GAT050 15.1  34.37 11.69 9J 3525/3195 80 -
LT295/55R22 125/122S E GAT051 15.1  34.76 12.17 9 1/2J 3640/3305 80 -
305/45R22 118H XL GAT008 12.6  32.8 11.93 10J 2910 50 600 A B
LT325/55R22 120/117S D GAT032 15.1  36.10 13.23 10J 3085/2835 50 -
33x12.50R22LT 114S F GAT056 15.1  32.52 12.50 10J 2600 80 -
35x12.50R22LT 121S F GAT057 15.1  34.52 12.50 10J 3195 80 -
37x12.50R22LT 127S F GAT058 15.1  36.52 12.50 10J 3860 80 -
TIRE SIZE LOAD/SPEED
INDEX		 LOAD
RANGE		 PART
NUMBER		 TD
32ND		 OD
INCH		 SW
INCH		 STANDARD
RIM		 MAXIMUM
LOAD(LBS)		 MAXIMUM
PRESS(PSI)		 UTQG
305/35R24 112H XL GAT007 12.6  32.44 12.32 11J 2469 50 600 A B
LT325/45R24 124S F GAT001 15.7  35.51 12.83 11J 3525 80 -
